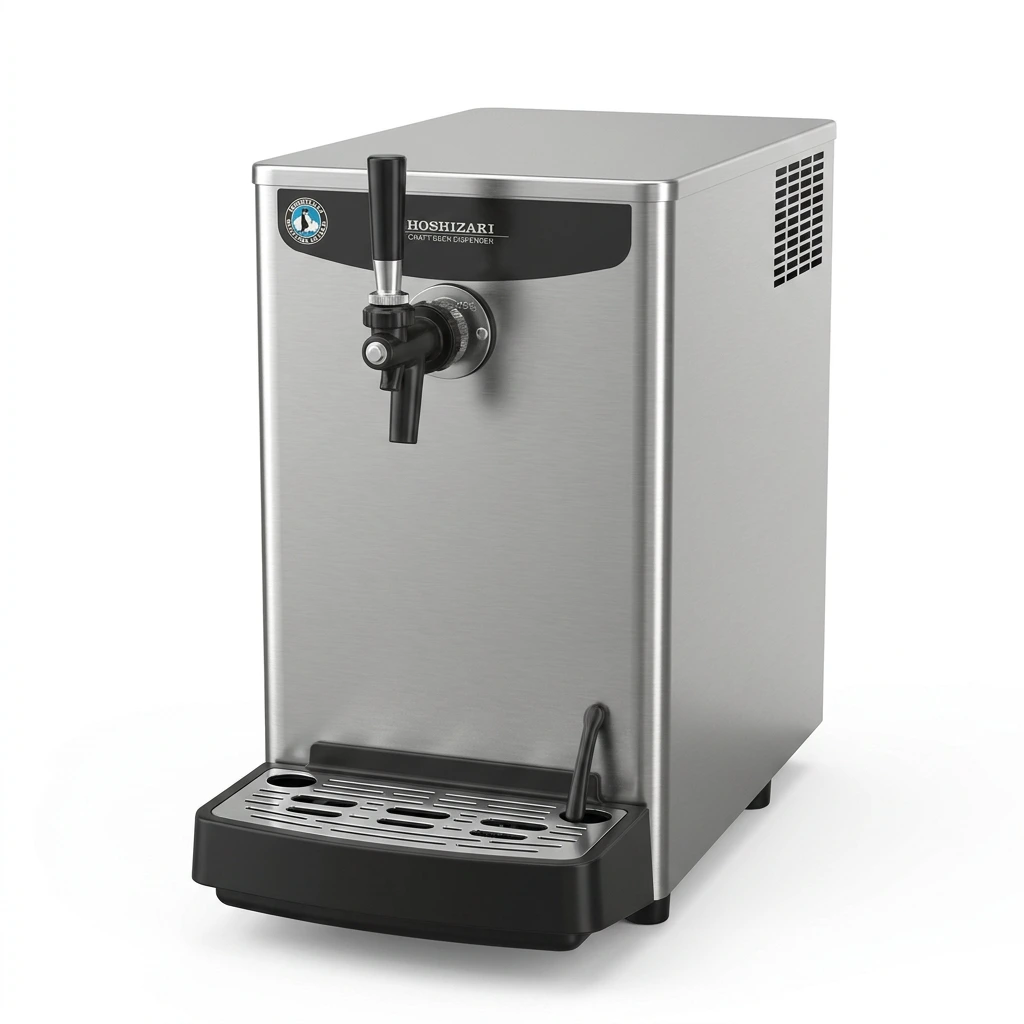

1 Tap Draught Dispenser

Overview

Mobile/Portable Draft Beer Dispenser Ideal for mobile bars, exclusive gatherings, catering services, golf clubs, microbreweries, home applications, and beyond. Dispense chilled beer from a sleek and compact dispenser designed for ambient kegs. The C-tap boasts distinct beer and foam spouts, ensuring a delightful, long-lasting froth
Read More...

- +
Share on:

Mobile/Portable Draft Beer Dispenser

Ideal for mobile bars, exclusive gatherings, catering services, golf clubs, microbreweries, home applications, and beyond. Dispense chilled beer from a sleek and compact dispenser designed for ambient kegs. The C-tap boasts distinct beer and foam spouts, ensuring a delightful, long-lasting froth atop your brew. With its small footprint, it offers versatile placement options.
  • Compact high-performance design
  • Dispenses cold beer straight from ambient kegs
  • Beer dispenser taps c/w creamer function. Allows user to create a smooth creamy head
  • Easily removable, cleanable condenser filters means minimal service calls
  • Totally enclosed design
  • Stainless steel outer for sleek attractive look
  • Ice bank 8kg
  • Plug ‘n’ Play beer system
  • Installation kit includes:
  • Harris single AS5034 bottle mount CO2 regulator
  • Nitto coil gas line & valve
  • Keg coupler MFAB complete with pin valves
  • Beer inlet line valve
  • Power supply 1 Phase 240V 50Hz (2.2A)
  • Refrigerant R134a/120g
  • Insulation Polyurethane Foam Cyclopentane
Dimensions Width: 330 mm, Depth: 646 mm, Height: 510 mm
Dispensing Capacity 40L (30°C to 8°C / 4 hours)
Electrical 1 Phase 240V 50Hz
Weight Net: 28kg, Gross: 31kg
Ice Bank 8kg
Water Bath Capacity 8L
Time to Make Full Ice Bank 8 hours (initial cooling water temperature 30°C)
Refrigerant R134a, 120kg
Ambient Temperature 5°C – 35°C

Overview

Mobile/Portable Draft Beer Dispenser

Ideal for mobile bars, exclusive gatherings, catering services, golf clubs, microbreweries, home applications, and beyond. Dispense chilled beer from a sleek and compact dispenser designed for ambient kegs. The C-tap boasts distinct beer and foam spouts, ensuring a delightful, long-lasting froth atop your brew. With its small footprint, it offers versatile placement options.

FEATURES

  • Compact high-performance design
  • Dispenses cold beer straight from ambient kegs
  • Beer dispenser taps c/w creamer function. Allows user to create a smooth creamy head
  • Easily removable, cleanable condenser filters means minimal service calls
  • Totally enclosed design
  • Stainless steel outer for sleek attractive look
  • Ice bank 8kg
  • Plug ‘n’ Play beer system
  • Installation kit includes:
  • Harris single AS5034 bottle mount CO2 regulator
  • Nitto coil gas line & valve
  • Keg coupler MFAB complete with pin valves
  • Beer inlet line valve
  • Power supply 1 Phase 240V 50Hz (2.2A)
  • Refrigerant R134a/120g
  • Insulation Polyurethane Foam Cyclopentane

SPECIFICATION

Dimensions Width: 330 mm, Depth: 646 mm, Height: 510 mm
Dispensing Capacity 40L (30°C to 8°C / 4 hours)
Electrical 1 Phase 240V 50Hz
Weight Net: 28kg, Gross: 31kg
Ice Bank 8kg
Water Bath Capacity 8L
Time to Make Full Ice Bank 8 hours (initial cooling water temperature 30°C)
Refrigerant R134a, 120kg
Ambient Temperature 5°C – 35°C
