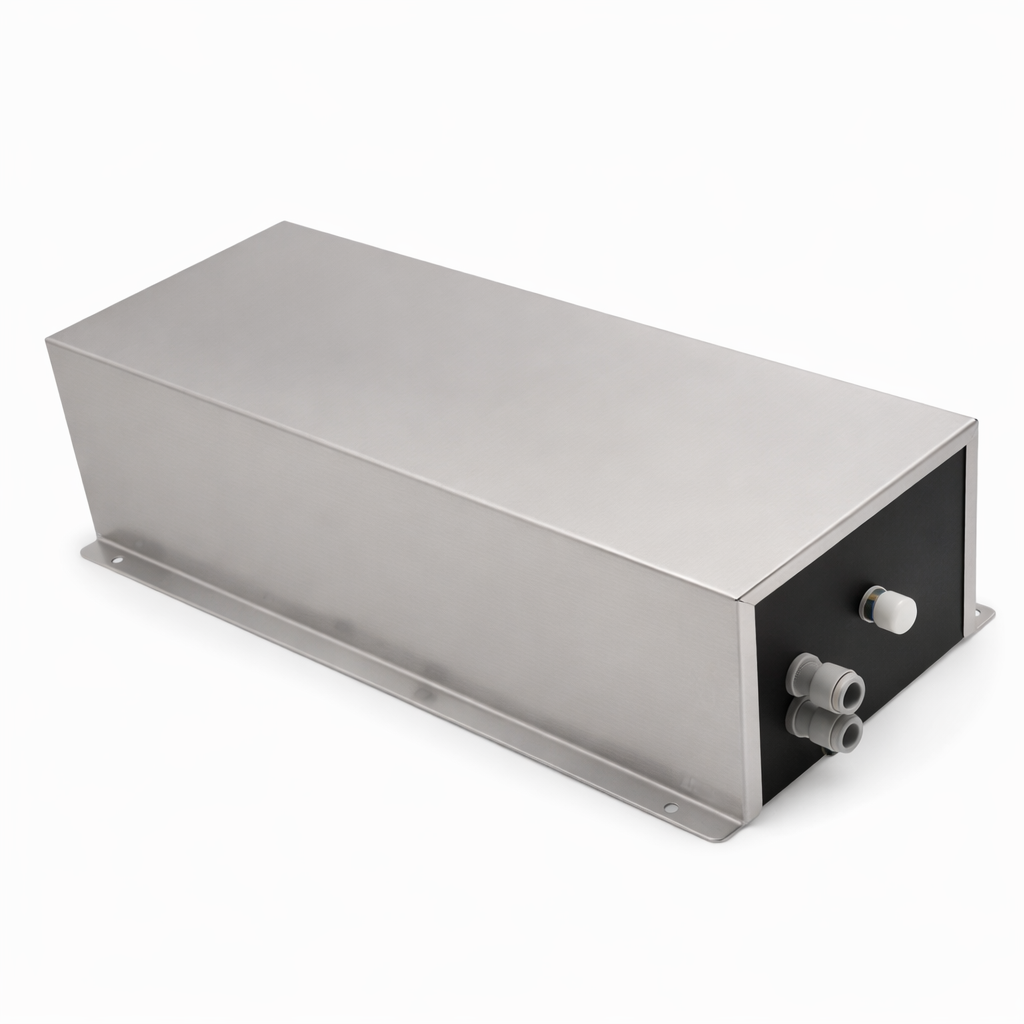

The 2 coil inline heat exchanger is so compact and light that it can be adapted to most under bar spaces.
Complete stainless steel construction
Has 2 x 6 metre x 8mm O.D. 304 grade
Product coils with Push Fit Connectors.
12.5mm Barb Glycol Connections
25mm Insulation
Compact and Lightweight – Stainless cover with mounting holes if required
Unique heat exchange technology
Scope to loop product coils for single product ambient inlet
| Dimensions | Width: 485 mm, Depth: 201 mm, Height: 111 mm |
| Nominal Flow Rate | Beer Circuit: 3.5 LPM |
| Max. Inlet Temperature | Beer Circuit: 20.2 °C |
| Working Pressure | Beer Circuit: Max. 400kPa |
| Coil Material | Glycol Circuit: 304 Stainless Steel |
| Working Pressure | Glycol Circuit: Max. 400kPa |
| Nominal Temperature | Glycol Circuit: -2 °C |
| Recommended Flow Rate | Glycol Circuit: 6LPM |
