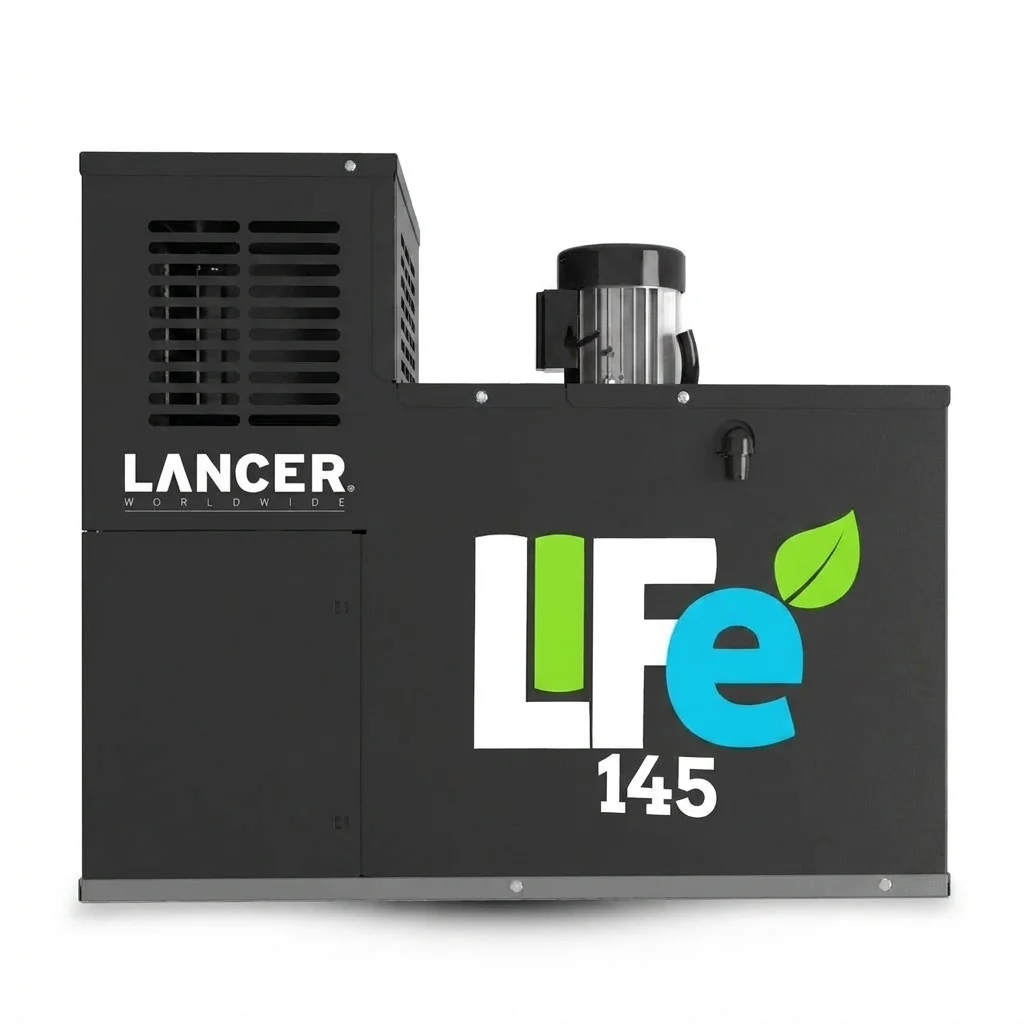

Life 145 Chiller

The Life Chillers are specifically designed to enhance performance and provide excellent value, resulting in longer beer runs while safeguarding your product and profitability. These chillers effectively prevent oxidation and corrosion, utilizing a steel plast housing and a stainless steel base. With the inclusion of R290 and an additional fuel compressor, they boast impressive compressor power. Furthermore, they offer the option of using gas R134A. The tubeless condenser is both lightweight and compact, engineered for maximum heat exchange. The cooling power has been significantly increased by up to 60% when compared to similar models in the HE series. A single screw is all it takes to service all components, thanks to the clever redesign. The integrated condenser cover allows quick and easy access to the fan motor, fan blades, klixon relay, and compressor. Every component is within reach with just a single screw.

Pre-mix beer cooler LIFE 145
Eco-friendly cooler with gas R290, reduced energy consumption and 40% higher performance compared to R404 coolers.
It features a special opening to speed up technical maintenance.
-Compressor: 1/2 HP
-Cooling Capacity: 130LT./Hour
-Power: 895W

Dimensions	Width: 500 mm, Depth: 740 mm, Height: 630 mm
Power	1/2 HP
Type Of Refrigerant Gas	R290A
Rated Power (-10°C +45°C)	1033W
Water Tank	50 Lt
No Of Cooling Coils	1 to 6
Ice Bank	Ice Bank: 123Kg
Cooling Capacity (in +25°C / out -4°C)	145 Lt./hour
Beverage Temperature In/Out	24°C/4°C
Supply Voltage Standard Frequency	220/240V -50Hz, 115V – 60Hzz, 220V – 60Hz
Power Consumption	800W
Operating Temperature Allowed	(+)10°/43°C
Max Relative Humidity Allowed	80%
Weight (Unladen Static Load)	50 Kg
