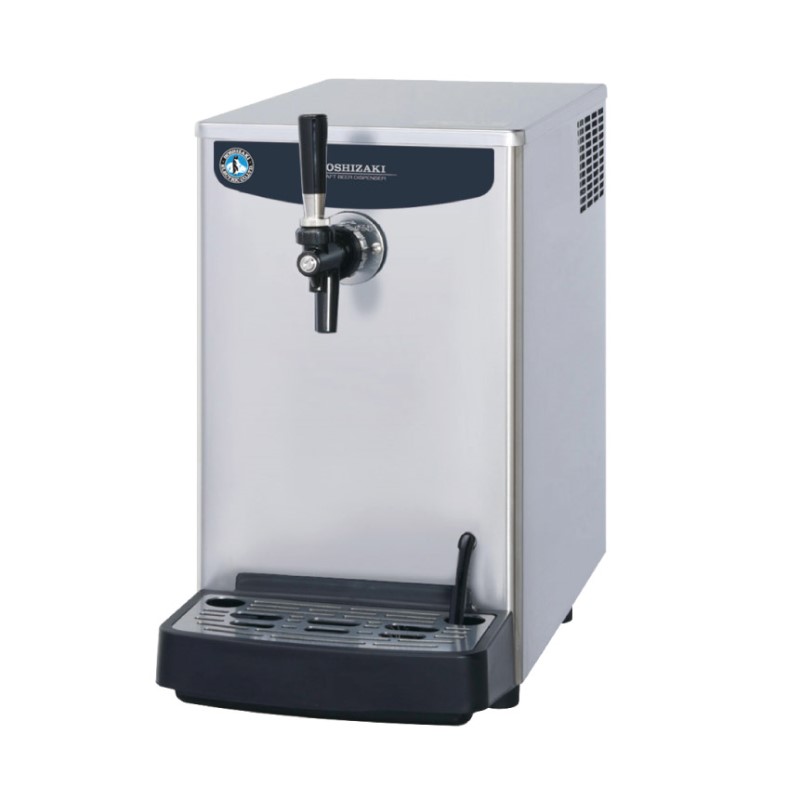

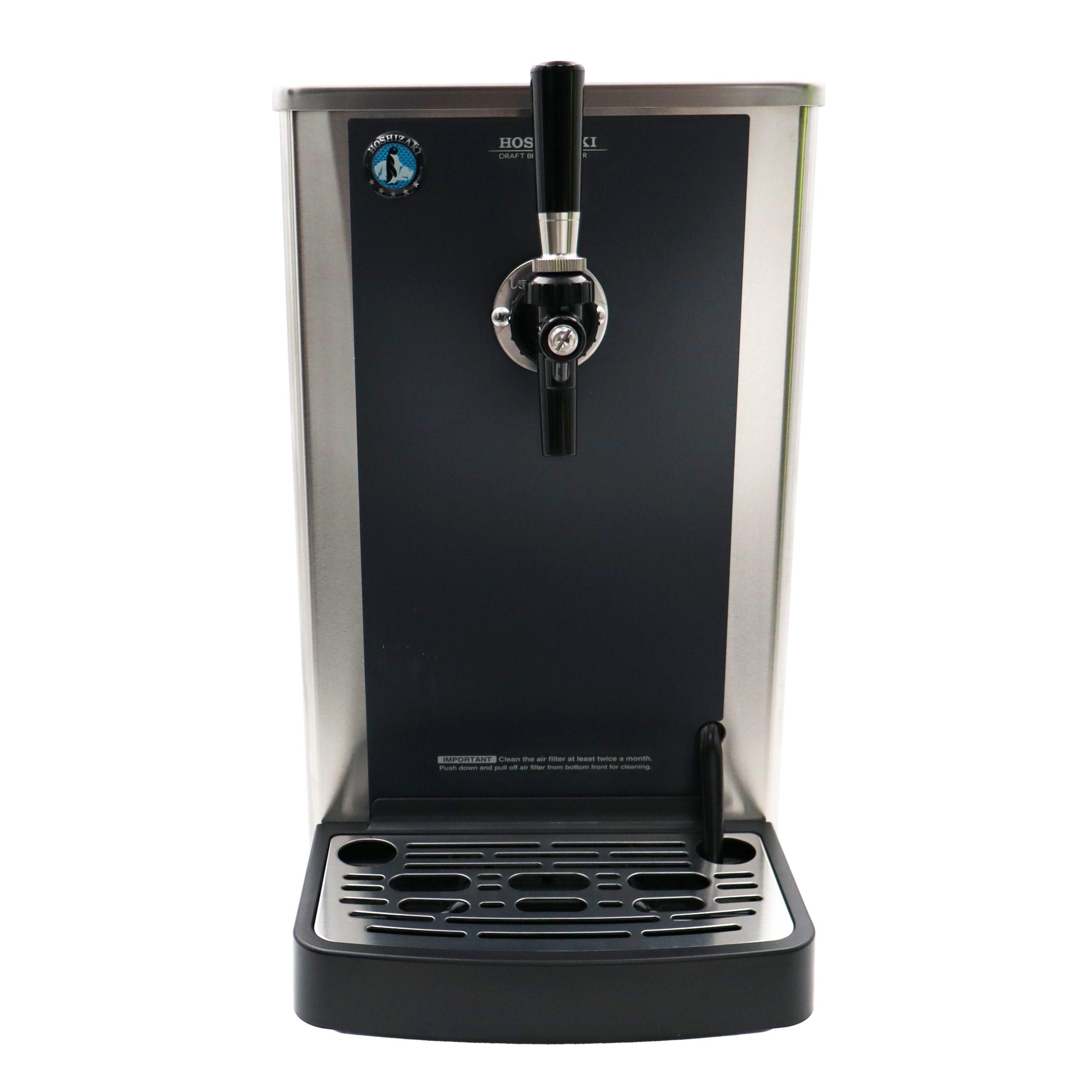

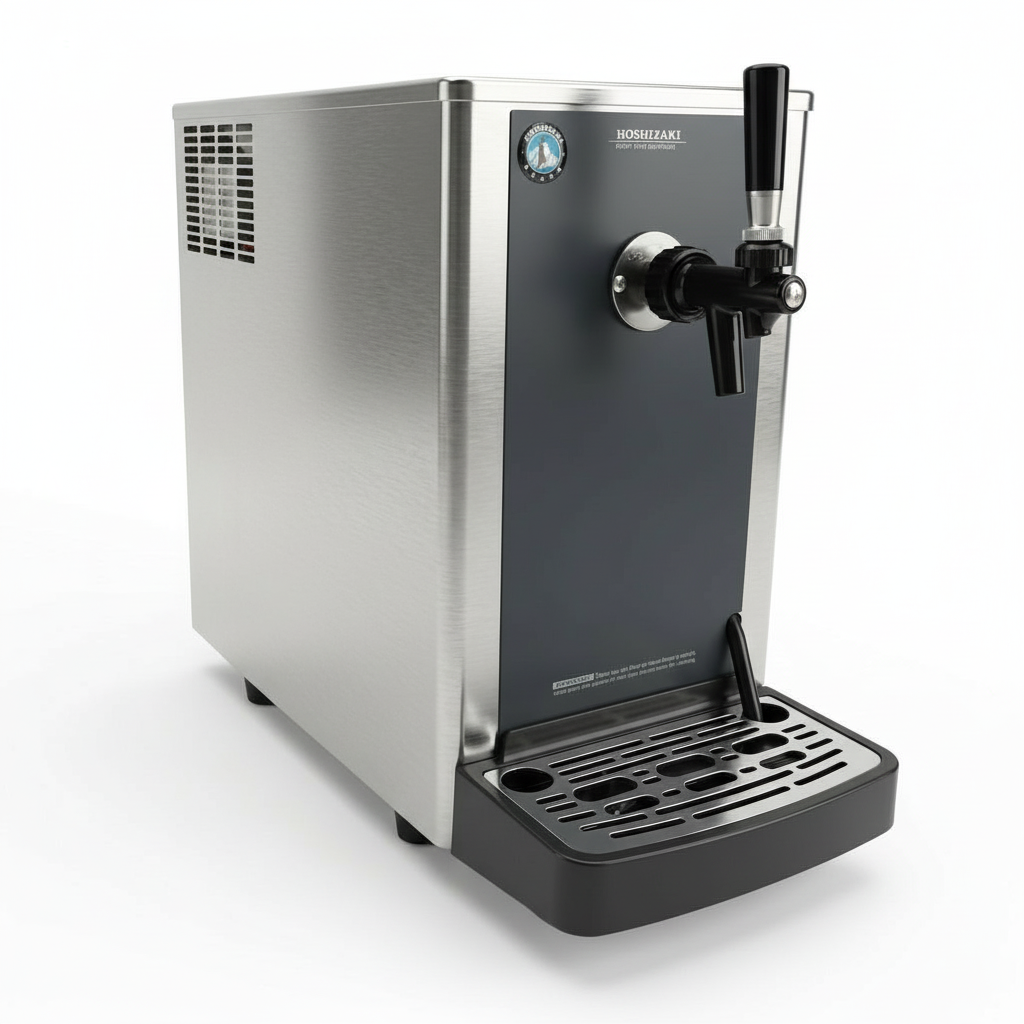

25L Draught Dispenser 1 Tap

25L Draught Dispenser 1 Tap

Overview

Share on:

Overview

FEATURES

SPECIFICATION

DOWNLOAD DOCUMENT

The perfect solution for cafes, restaurants, boutique bars and home use. Ideal for dispensing beer, wines, ciders or any premix beverage.

Compact high-performance design
Dispenses cold beer straight from ambient kegs
Beer dispenser taps c/w creamer function. Allows user to create a smooth creamy head
Easily removable, cleanable condenser filters means minimal service calls
Totally enclosed design
Stainless steel outer for sleek attractive look
Ice bank 4kg
Plug ‘n’ Play beer system
Installation kit includes:
Harris single AS5034 bottle mount CO2 regulator
Nitto coil gas line & valve
Keg coupler MFAB complete with pin valves
Beer inlet line valve
Power supply 1 Phase 240V 50Hz (2.2A)
Refrigerant R134a/90g
Insulation Polyurethane Foam Cyclopentane

Dimensions	Width: 255 mm, Depth: 587 mm, Height: 460 mm
Dispensing Capacity	25L /4 hours
Electrical	1 Phase 240V 50Hz
Weight	Net: 24kg Gross: 27kg
Time to Make Full Ice Bank	5 hours (initial cooling water temperature 30°C)
Refrigerant	R134a, 95kg
Ambient Temperature	5°C – 35°C

DBF-25-Dimensional-Drawing

Instruction Manual

Overview

The perfect solution for cafes, restaurants, boutique bars and home use. Ideal for dispensing beer, wines, ciders or any premix beverage.

FEATURES

Compact high-performance design
Dispenses cold beer straight from ambient kegs
Beer dispenser taps c/w creamer function. Allows user to create a smooth creamy head
Easily removable, cleanable condenser filters means minimal service calls
Totally enclosed design
Stainless steel outer for sleek attractive look
Ice bank 4kg
Plug ‘n’ Play beer system
Installation kit includes:
Harris single AS5034 bottle mount CO2 regulator
Nitto coil gas line & valve
Keg coupler MFAB complete with pin valves
Beer inlet line valve
Power supply 1 Phase 240V 50Hz (2.2A)
Refrigerant R134a/90g
Insulation Polyurethane Foam Cyclopentane

SPECIFICATION

Dimensions	Width: 255 mm, Depth: 587 mm, Height: 460 mm
Dispensing Capacity	25L /4 hours
Electrical	1 Phase 240V 50Hz
Weight	Net: 24kg Gross: 27kg
Time to Make Full Ice Bank	5 hours (initial cooling water temperature 30°C)
Refrigerant	R134a, 95kg
Ambient Temperature	5°C – 35°C

DOWNLOAD DOCUMENT

DBF-25-Dimensional-Drawing

Instruction Manual
